MJ-5200 5.2m UV Hybrid Printer

5.2m Extra-Wide UV Printing,The MJ-5200 provides an extra-wide printing platform designed for oversized graphics and large-format production. Its 5.2m class printing width helps reduce the need for panel joining when producing large banners, backdrops, advertising graphics and other wide-format applications.
Up to 40 Printheads for High Production Efficiency,The MJ-5200 supports 8–40 Ricoh Gen5/Gen6 or Konica 1024i/1024A printheads. The high printhead capacity enables high-volume production configurations and provides greater flexibility for different speed and image-quality requirements.
Adjustable Roller Air Pressure,The roller system can be adjusted according to the diameter and characteristics of the printing material. By controlling the air pressure inside the rollers, the printer can accommodate different media conditions and improve material handling stability.
Integrated Machine Control Center,The MJ-5200 features an integrated machine control center designed to centralize key operating functions and improve production efficiency. The operator can monitor and control important printer functions from one centralized interface.

The Aily Group MJ-5200 5.2m UV Hybrid Printer is an industrial large format UV printing solution designed for high-volume production and oversized printing applications. With a configurable 8–40 printhead system, the MJ-5200 is engineered for high productivity while maintaining stable and consistent printing performance. Designed for professional printing companies and large-format production environments, the MJ-5200 combines a heavy-duty mechanical structure with advanced ink management, high-efficiency machine control and flexible printhead configurations. The printer supports Ricoh Gen5/Gen6 and Konica 1024i/1024A printheads, with configurations of up to 40 printheads. This allows users to select a suitable configuration according to production speed, print quality and application requirements.

MJ-5200 5.2m UV Hybrid Printer Video

MJ-5200 5.2m UV Hybrid Printer Details

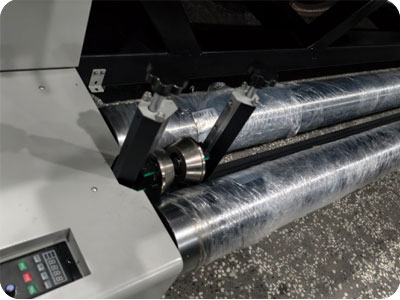

Adapt to different diameter material by adjusting air pressure inside rollers

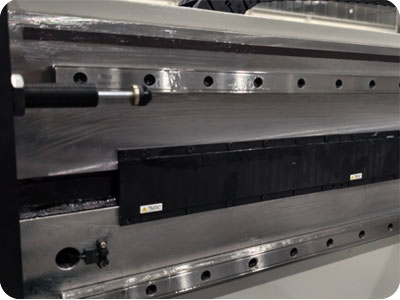

Branded accessories used for high attrition areas

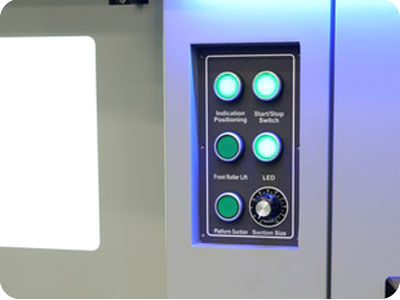

Integrated Big functional machine control centre for high-efficiency

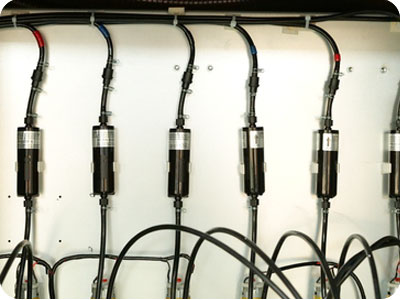

Rigorous ink filtration design effectively avoid impurities from going into the ink supply system

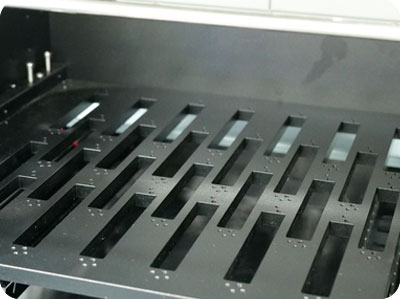

Support max 40 or more OEM konica printheads with higher speed

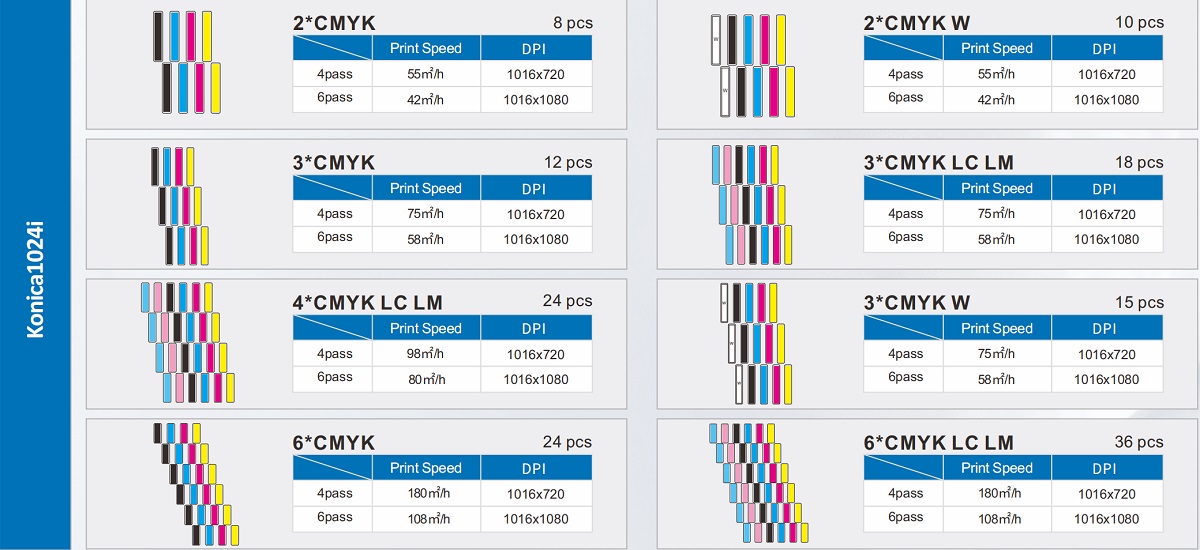

MJ-5200 Printhead Resolution

MJ-5200 5.2m UV Hybrid Printer Specification

Print Software	Caldera/Phototprint
Print Modes	Max 6 rows, match all production need
Machine Functions	Movable folder platform, Lack ink alarm, Anti-collusion device, Independent Ink heating control, Neagtive inksupply, Print height sensor
Printing Heads	8-40pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A
Machine Configurations	THK Guiderail, Leadshine Motor, BYHX Board, Germany imported tank chain, All-In-One Computer(optional)
All-In-One Computer Configurations	8th Generations i7-8750H Processor, 64G/128G, 15.6-inch 1920×1080 Touch Screen
Print Colors	CMYK LC LM W V
Working Environment	6000W Electricity Power, 25℃-30℃ humidty50%-70%
Package Info	788020841846mm,4500KG
